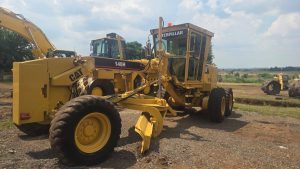

1999 CAT 120H Grader
5500 True Hours
Ex Public Works Machine
Our Ref: CM703
Specifications
Engine
Number Of Cylinders
6
Net Power Gear 4-6
125hp
Engine Make
2236
Engine Model
3116 DITA
Power Measured @
2000rpm
Torque Measured @
1400rpm
Max Power
140hp
Net Power Gears 7-8
140hp
Displacement
402.8cu in
Aspiration
turbocharged
Operational
Std Operation Weight – Front Axle
7880lb
Std Operation Weight – Rear Axle
19720lb
Hydraulic System Fluid Capacity
18gal
Std Operation Weight – Total
25040.2lb
Oil System Fluid Capacity
6.1gal
Fuel Capacity
89.9gal
Cooling System Fluid Capacity
10.6gal
Rear Diff/Final Drive Fluid Capacity
12.5gal
Circle Gearbox Fluid Capacity
1.9gal
Tandem Case Fluid Capacity (Each)
13gal
Tire Size
13-24 (10 PR) (G-2)
Operating Voltage
24V
Alternator Supplied Amperage
35amps
Steering
Articulation Angle
20degrees
Turning Radius
23.7ft in
Transmission
Transmission Type
direct drive, powershift
Number Of Gears – Forward
8
Number Of Gears – Reverse
6
Max Speed – Forward
26.5mph
Max Speed – Reverse
21mph
Front Axle
Wheel Lean
18degrees
Oscillation – Total
32degrees
Ground Clearance
2ft in
Moldboard
Moldboard Width
12.1ft in
Moldboard Height
24.1in
Moldboard Thickness
0.9in
Max Depth Of Cut
30.6in
Side Shift Left
20.7in
Side Shift Right
26in
Blade Pull At Max Weight
23503.5lb
Blade Down Pressure
20062.1lb
Hydraulic System
Pump Type
Axial Piston
Pump Flow
39.1gal/min
Relief Valve Pressure
3500psi
Circle
Diameter
60.3in
Rotation
360degrees
Shift Left
24.7in
Shift Right
24.8in
Max Reach Outside Tires – Left
72.5in
Max Reach Outside Tires – Right
75.3in
Max Lift Above Ground
18in
Blade Tip Angle – Front
40degrees
Blade Tip Angle – Rear
5degrees
No Content Available

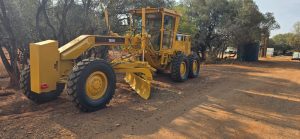

1998 CAT 140H Grader
Hours – 148
Our Ref: CM610
The Caterpillar 140H Motor Grader is a versatile construction machine typically equipped with a 165–185 hp Cat 3176C engine, weighing approximately 14,677–18,400 kg. Key specifications include a 3.66m (12 ft) or 4.27m (14 ft) moldboard, a 44 km/h max forward speed, and 20-degree articulation. It features a power-shift transmission and a closed-center hydraulic system. Engine and Power Engine Model: Cat 3176C DITA ATAAC VHP (Variable Horsepower)Net Power (Gears 1-2): 165 hp (123 kW)Net Power (Gears 3-6/4-6): 185 hp (138 kW)Displacement: 567.5 cu in (\(9.3L\))Cylinders: 6 Dimensions Length: 8.71 m (28.6 ft)Width over Tires: 2.46 m (8.1 ft)Height to Top of Cab: 3.13 m (10.3 ft)Ground Clearance (Rear): 0.6 m (2 ft)Turning Radius: 7.5 m (24.6 ft) Weight Standard Operating Weight (Total): ~14,677 kg (32,357 lbs)Operating Weight (Max/Equipped): Up to 18,400 kg (40,565 lbs)Front Axle Weight: 4,138 kgRear Axle Weight: 10,539 kg Moldboard (Blade) Width: 3.66 meters (12 feet) standardHeight: 610 mm (24 inches)Blade Down Pressure: 28,697 lbs (13,017 kg)Arc Radius: 1,530 mm (60.2 inches) Transmission and Hydraulics Type: Direct drive, power-shiftSpeeds: 8 forward, 6 reverseMax Speed (Forward): 44 km/h (27.4 mph)Max Speed (Reverse): 34.7 km/h (21.6 mph)Hydraulic System Type: Closed-center, variable displacement pump Capacities Fuel Tank: 397 liters (105 gallons)Cooling System: 38 liters (10 gallons)Hydraulic System: 80 liters (20.8 gallons) Note: Specifications can vary based on the specific model year and attachments (e.g., ripper, blade extensions).
No Content Available

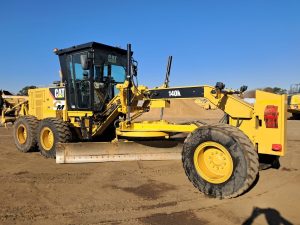

2019 CAT 140K Grader
Hours – 12713
Papers
Aircon
Full Service History
Our Ref: CM561
The Caterpillar 140K grader features a Cat C7 ACERT engine providing a net base power of 128 kW (171 hp) and variable power up to 143 kW (191 hp). Key specifications include a 7.2L displacement, 17,271 kg (38,076 lb) operating weight, and a 3.7m (12 ft) wide moldboard. It utilizes a power shift countershaft transmission and Proportional Priority Pressure-Compensating (PPPC) hydraulic system for superior control.
Engine:
Model: Cat C7 ACERT
Base Power (1st Gear – Net): 128 kW (171 hp)
Variable Horsepower (VHP): 128–143 kW (171–191 hp)
Displacement: 7.2 L
Cylinders: 6
Weights:
Operating Weight (Typically Equipped): 17,271 kg (38,076 lb)
Blades:
Blade Width: 3.7 m (12 ft)
Transmission & Hydraulics:
Type: Power Shift
Hydraulic System: Load-sensing, closed center, PPPC
Features:
Strong Drawbar, Circle, and Moldboard: Built for high strength and durability.
High-Quality Hydraulic Control: PPPC valves improve efficiency by matching flow and pressure to power demands.
Enhanced Moldboard Design: Offers optimal curvature for efficient material movement.
No Content Available

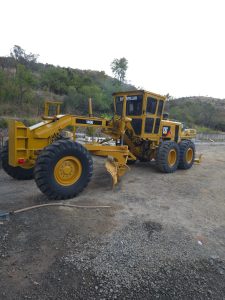

1998 CAT 140H GRADER Available
Hours – Unknown
Our Ref: CM438
It features a 3306 turbocharged engine that produces up to 185 flywheel horsepower (fwhp), and direct drive powershift transmission with electronic control.
Other specifications may differ slightly based on where a 140H motor grader was built and in what year.
Caterpillar 140H motor graders built in the United States have the serial prefix 2ZK, 8JM or 8KM.
Australian models use the 9ZN prefix, and Brazilian models use the prefix 3AS, 5HM or 9TN.
The 8JM, 8KM, 5HM and 3AS units have engine power management, while other models have variable horsepower.
No Content Available
1996 Cat 120G Grader
Hours Unknown
Very Good Condition
Farm Working Machine
Our Ref: CM406
Specifications
Engine
Engine Make
2236
Engine Model
3304
Net Power Gear 5-6
125hp
Max Power
125hp
Displacement
427.2cu in
