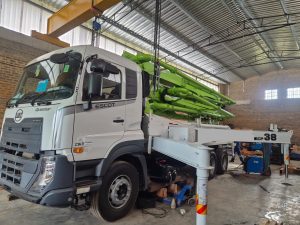

2025 KCP Concrete Pump (38m)
Mounted on a UD370 Escot (option 1)
or
2025 KCP Concrete Pump (38m) (option 2)
(including installation on your own truck
Our Ref: CM649
Specifications available on request
No Content Available

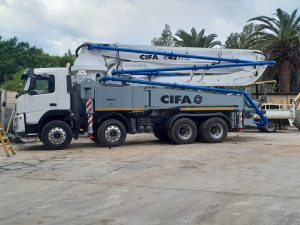

2007 Volvo FM9 340 / Cifa Concrete Pump Truck
Volvo FM9 340.
2021 Complete engine overhaul.
2024 Gearbox Top Cover replaced.
2022 New Clutch kit.
Cifa Pump K40
2023 Feb New Concrete Barrels
2024 April, Hydraulic pumping cylinders overhaul kit.
2024 July Induction Hardened Boom Pipes.
2021 Overhauled both hydraulic pumps by Turnkey Hydraulics.
40m Reach
New hopper grid will be fitted.
New wear plate and wear ring will be supplied.
Our Ref: CM579
No Content Available

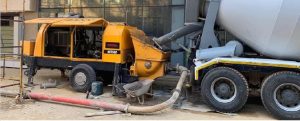

The SANY HBT50 series consists of diesel and electric trailer-mounted concrete pumps designed for medium-sized construction projects, featuring a maximum output capacity of approximately 50–60 m³/h.
Key specifications for common HBT50 models include:
Performance
Max Theoretical Output: 50 – 59 m³/h
Max Concrete Pressure: 6 – 10 MPa (varies by model, e.g., HBT5008C-6Y has 8 MPa)
Engine Power: 49 – 73.6 kW
Max Aggregate Size: 40 – 50 mm (depending on pipe diameter)
Vertical Conveying Distance: Up to 150m
Dimensions and Weight
Weight: Approx. 5,800 kg – 6,590 kg
Dimensions (L x W x H): Approx. 6051 – 6585 mm x 2068 – 2100 mm x 2215 mm
Key Features
Energy Saving: New-generation technology reduces energy consumption by up to 25%.
Control System: PLC system with real-time text display and self-diagnosis for over 50 faults.
Wear Parts: Features wear-resistant plates, cutting rings, and pistons, suitable for difficult concrete.
Hydraulic System: Open-loop system with high-pressure, large-flow, and electro-hydraulic proportional control.
Operational Range: Capable of operating in temperatures from -22°C to 55°C.
